6YXS | pdb_00006yxs

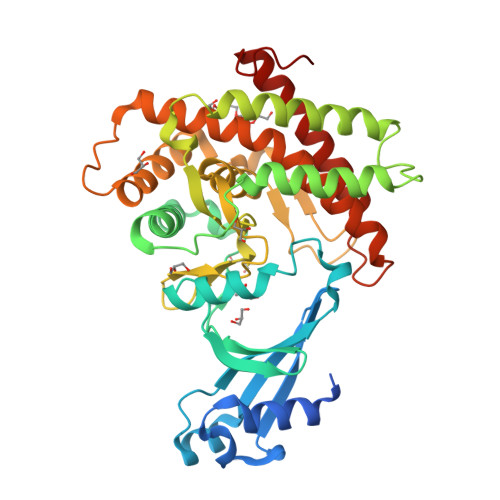

Crystal structure of the apo form of choline kinase from Plasmodium falciparum

PDB DOI: https://doi.org/10.2210/pdb6YXS/pdb

Classification: TRANSFERASE
Organism(s): Plasmodium falciparum 3D7
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2020-05-03 Released: 2020-08-05
Deposition Author(s): Torretta, A., Parisini, E.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.238 (Depositor), 0.240 (DCC)
R-Value Work:
0.206 (Depositor), 0.210 (DCC)
R-Value Observed:
0.208 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Crystal Structure of the Apo and the ADP-Bound Form of Choline Kinase from Plasmodium falciparum

Torretta, A., Lopez-Cara, L.C., Parisini, E.

(2020) Crystals (Basel)

DOI: https://doi.org/10.3390/cryst10070613

Macromolecule Content

Total Structure Weight: 46.15 kDa
Atom Count: 3,277
Modelled Residue Count: 359
Deposited Residue Count: 382
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Choline kinase	A	382	Plasmodium falciparum 3D7	Mutation(s): 0 Gene Names: PF3D7_1401800 EC: 2.7.1.32
UniProt
Find proteins for Q8IM71 (Plasmodium falciparum (isolate 3D7)) Explore Q8IM71 Go to UniProtKB: Q8IM71
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q8IM71
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1PE Query on 1PE Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	PENTAETHYLENE GLYCOL C₁₀ H₂₂ O₆ JLFNLZLINWHATN-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
