5F5E | pdb_00005f5e

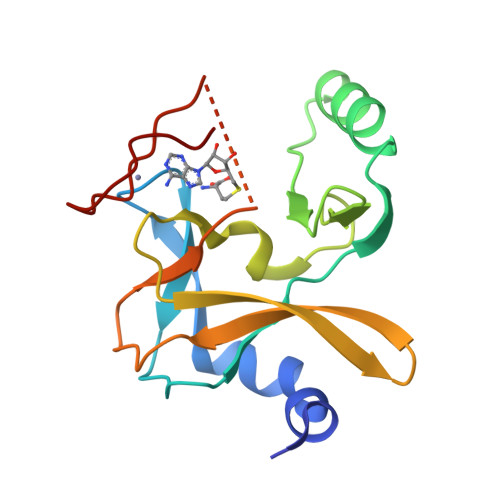

The Crystal Structure of MLL1 SET domain with N3816I/Q3867L mutation


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.236 (Depositor), 0.240 (DCC)
  • R-Value Work:
    0.202 (Depositor), 0.200 (DCC)
  • R-Value Observed:
    0.203 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted SAHClick on this verticalbar to view details

This is version 1.2 of the entry. See complete history


Literature

Structural basis for activity regulation of MLL family methyltransferases.

Li, Y.Han, J.Zhang, Y.Cao, F.Liu, Z.Li, S.Wu, J.Hu, C.Wang, Y.Shuai, J.Chen, J.Cao, L.Li, D.Shi, P.Tian, C.Zhang, J.Dou, Y.Li, G.Chen, Y.Lei, M.

(2016) Nature 530: 447-452

  • DOI: https://doi.org/10.1038/nature16952
  • Primary Citation of Related Structures:
    5F59, 5F5E, 5F6K, 5F6L

  • PubMed Abstract:

    The mixed lineage leukaemia (MLL) family of proteins (including MLL1-MLL4, SET1A and SET1B) specifically methylate histone 3 Lys4, and have pivotal roles in the transcriptional regulation of genes involved in haematopoiesis and development. The methyltransferase activity of MLL1, by itself severely compromised, is stimulated by the three conserved factors WDR5, RBBP5 and ASH2L, which are shared by all MLL family complexes. However, the molecular mechanism of how these factors regulate the activity of MLL proteins still remains poorly understood. Here we show that a minimized human RBBP5-ASH2L heterodimer is the structural unit that interacts with and activates all MLL family histone methyltransferases. Our structural, biochemical and computational analyses reveal a two-step activation mechanism of MLL family proteins. These findings provide unprecedented insights into the common theme and functional plasticity in complex assembly and activity regulation of MLL family methyltransferases, and also suggest a universal regulation mechanism for most histone methyltransferases.


  • Organizational Affiliation

    National Center for Protein Science Shanghai, State Key Laboratory of Molecular Biology, Institute of Biochemistry and Cell Biology, Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences, 333 Haike Road, Shanghai 201210, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Histone-lysine N-methyltransferase 2A158Homo sapiensMutation(s): 2
Gene Names: KMT2AALL1CXXC7HRXHTRXMLLMLL1TRX1
EC: 2.1.1.43 (PDB Primary Data), 2.1.1.364 (UniProt), 2.1.1 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q03164 (Homo sapiens)
Explore Q03164
Go to UniProtKB:  Q03164
PHAROS:  Q03164
GTEx:  ENSG00000118058
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ03164
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Binding Affinity Annotations
IDSourceBinding Affinity
SAH BindingDB:  5F5E IC50: 2300 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.236 (Depositor), 0.240 (DCC)
  • R-Value Work:  0.202 (Depositor), 0.200 (DCC)
  • R-Value Observed: 0.203 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.574α = 90
b = 54.574β = 90
c = 104.656γ = 120
Software Package:
Software NamePurpose
HKL-2000data scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
HKL-2000data reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted SAHClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Chinese Academy of SciencesChinaXDB08010201

Revision History  (Full details and data files)

  • Version 1.0: 2016-02-24
    Type: Initial release
  • Version 1.1: 2016-04-20
    Changes: Database references
  • Version 1.2: 2023-11-08
    Changes: Data collection, Database references, Derived calculations, Refinement description
