3DB8 | pdb_00003db8

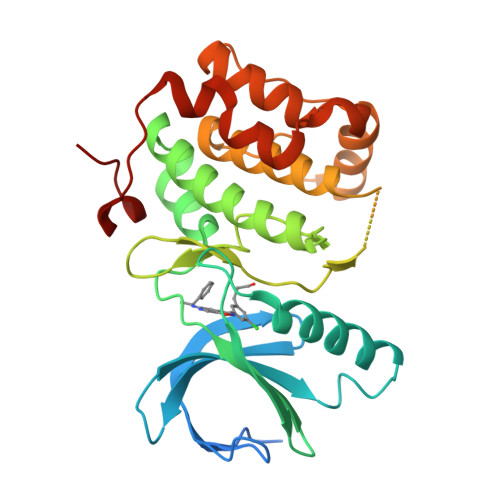

Crystal structure of an activated (Thr->Asp) Polo-like kinase 1 (Plk1) catalytic domain in complex with Compound 041

PDB DOI: https://doi.org/10.2210/pdb3DB8/pdb

Classification: TRANSFERASE
Organism(s): Danio rerio
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2008-05-30 Released: 2008-10-07
Deposition Author(s): Elling, R.A., Hanan, E.J., Lew, W., Romanowski, M.J.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.15 Å
R-Value Free:
0.274 (Depositor), 0.270 (DCC)
R-Value Work:
0.226 (Depositor), 0.220 (DCC)
R-Value Observed:
0.232 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.3 of the entry. See complete history.

Literature

Design and synthesis of 2-amino-isoxazolopyridines as Polo-like kinase inhibitors.

Hanan, E.J., Fucini, R.V., Romanowski, M.J., Elling, R.A., Lew, W., Purkey, H.E., VanderPorten, E.C., Yang, W.

(2008) Bioorg Med Chem Lett 18: 5186-5189

PubMed: 18790636 Search on PubMed
DOI: https://doi.org/10.1016/j.bmcl.2008.08.091
Primary Citation of Related Structures:
3DB8

PubMed Abstract:
A series of 2-amino-isoxazolopyridines was designed and synthesized as Polo-like kinase (Plk) inhibitors. Key SAR and crystallographic data are discussed. More advanced analogues inhibit Plk1 with good enzymatic activity and modest cell-based activity. Differential selectivity among the three Plk isoforms is observed.

Organizational Affiliation

Sunesis Pharmaceuticals, Inc., 395 Oyster Point Boulevard Suite 400, South San Francisco, CA 94080, USA. info@sunesis.com

Macromolecule Content

Total Structure Weight: 36.4 kDa
Atom Count: 2,110
Modelled Residue Count: 261
Deposited Residue Count: 317
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Polo-like kinase 1	A	317	Danio rerio	Mutation(s): 1 Gene Names: plk1 EC: 2.7.11.21
UniProt
Find proteins for Q4KMI8 (Danio rerio) Explore Q4KMI8 Go to UniProtKB: Q4KMI8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q4KMI8
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1FR Query on 1FR Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	3-[3-chloro-5-(5-{[(1S)-1-phenylethyl]amino}isoxazolo[5,4-c]pyridin-3-yl)phenyl]propan-1-ol C₂₃ H₂₂ Cl N₃ O₂ MMGKIHLBFPJYJL-HNNXBMFYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.15 Å
R-Value Free: 0.274 (Depositor), 0.270 (DCC)
R-Value Work: 0.226 (Depositor), 0.220 (DCC)
R-Value Observed: 0.232 (Depositor)

Space Group: I 2 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 135.118	α = 90
b = 135.118	β = 90
c = 135.118	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
ADSC	data collection
MOSFLM	data reduction
SCALA	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2008-10-07

Deposition Author(s):

Romanowski, M.J.

Revision History (Full details and data files)

Version 1.0: 2008-10-07
Type: Initial release
Version 1.1: 2011-07-13
Changes: Version format compliance
Version 1.2: 2021-10-20
Changes: Database references, Derived calculations
Version 1.3: 2023-08-30
Changes: Data collection, Refinement description
