2HRG | pdb_00002hrg

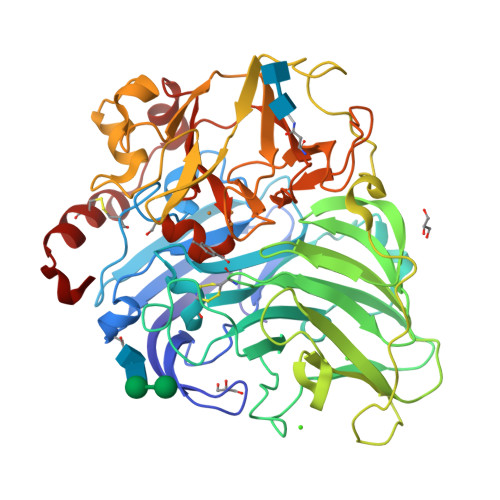

Crystal Structure of Blue Laccase from Trametes trogii complexed with p-methylbenzoate

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.58 Å
  • R-Value Free:
    0.192 (Depositor), 0.190 (DCC)
  • R-Value Work:
    0.174 (Depositor), 0.180 (DCC)
  • R-Value Observed:
    0.175 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 2.2 of the entry. See complete history.


Literature

Crystal structure of the blue multicopper oxidase from the white-rot fungus Trametes trogii complexed with p-toluate

Matera, I., Gullotto, A., Tilli, S., Ferraroni, M., Scozzafava, A., Briganti, F.

(2008) Inorganica Chim Acta 361: 4129-4137


Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Laccase496Coriolopsis trogiiMutation(s): 0
EC: 1.10.3.2
UniProt
Find proteins for Q9HDQ0 (Coriolopsis trogii)
Explore Q9HDQ0
Go to UniProtKB:  Q9HDQ0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9HDQ0
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
B
4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G22573RC
GlyCosmos:  G22573RC
GlyGen:  G22573RC
Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
C
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
4MA
Query on 4MA
Download Ideal Coordinates CCD File
N [auth A]4-METHYLBENZOIC ACID
C8 H8 O2
LPNBBFKOUUSUDB-UHFFFAOYSA-N
GOL
Query on GOL
Download Ideal Coordinates CCD File
K [auth A],
L [auth A],
M [auth A]		GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CU
Query on CU
Download Ideal Coordinates CCD File
G [auth A],
H [auth A],
I [auth A],
J [auth A]		COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
CA
Query on CA
Download Ideal Coordinates CCD File
D [auth A],
E [auth A],
F [auth A]		CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.58 Å
  • R-Value Free:  0.192 (Depositor), 0.190 (DCC)
  • R-Value Work:  0.174 (Depositor), 0.180 (DCC)
  • R-Value Observed: 0.175 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 84.385α = 90
b = 85.128β = 90
c = 108.561γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
SCALAdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2007-09-11
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Non-polymer description, Version format compliance
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Non-polymer description, Structure summary
  • Version 2.1: 2024-04-03
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
  • Version 2.2: 2024-11-20
    Changes: Structure summary
