2AEO | pdb_00002aeo

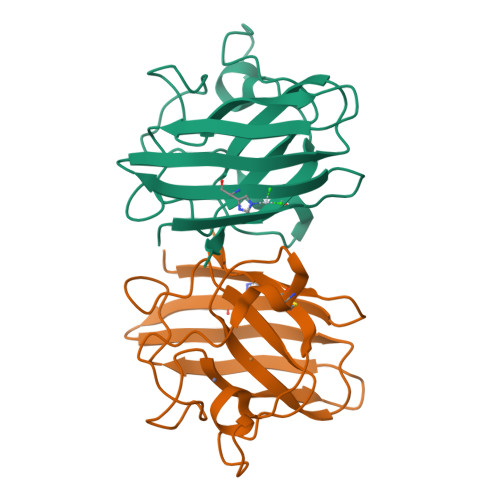

Crystal structure of cisplatinated bovine Cu,Zn superoxide dismutase

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.236 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.202 (Depositor), 0.200 (DCC)
  • R-Value Observed:
    0.205 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.6 of the entry. See complete history.


Literature

Structural investigation of cisplatin-protein interactions: selective platination of His19 in a cuprozinc superoxide dismutase.

Calderone, V., Casini, A., Mangani, S., Messori, L., Orioli, P.L.

(2006) Angew Chem Int Ed Engl 45: 1267-1269


Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Superoxide dismutase [Cu-Zn]
A, B
151Bos taurusMutation(s): 0
EC: 1.15.1.1
UniProt
Find proteins for P00442 (Bos taurus)
Explore P00442
Go to UniProtKB:  P00442
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00442
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.236 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.202 (Depositor), 0.200 (DCC)
  • R-Value Observed: 0.205 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 47.207α = 90
b = 50.92β = 90
c = 146.738γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
CCP4data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-05-02
    Type: Initial release
  • Version 1.1: 2008-04-30
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2014-07-23
    Changes: Non-polymer description
  • Version 1.4: 2017-12-20
    Changes: Database references
  • Version 1.5: 2023-10-25
    Changes: Data collection, Database references, Derived calculations, Refinement description
  • Version 1.6: 2024-10-30
    Changes: Structure summary
