4QQ5 | pdb_00004qq5

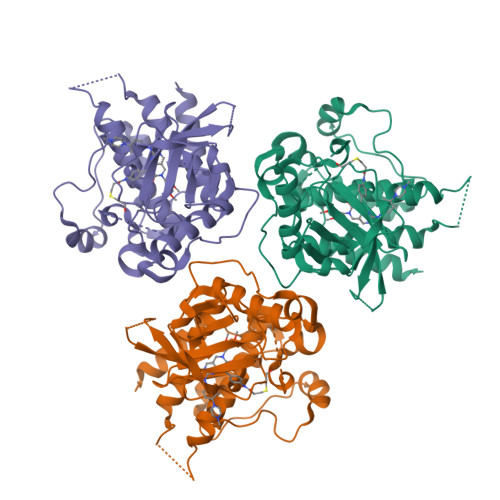

Crystal Structure of FGF Receptor (FGFR) 4 Kinase Harboring the V550L Gate-Keeper Mutation in Complex With FIIN-2, an Irreversible Tyrosine Kinase Inhibitor Capable of Overcoming FGFR Kinase Gate-Keeper Mutations


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free:
    0.234 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.193 (Depositor), 0.200 (DCC)
  • R-Value Observed:
    0.197 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 37OClick on this verticalbar to view details

This is version 1.3 of the entry. See complete history


Literature

DFG-out Mode of Inhibition by an Irreversible Type-1 Inhibitor Capable of Overcoming Gate-Keeper Mutations in FGF Receptors.

Huang, Z.Tan, L.Wang, H.Liu, Y.Blais, S.Deng, J.Neubert, T.A.Gray, N.S.Li, X.Mohammadi, M.

(2015) ACS Chem Biol 10: 299-309

  • DOI: https://doi.org/10.1021/cb500674s
  • Primary Citation of Related Structures:
    4QQ5, 4QQJ, 4QQT, 4QRC

  • PubMed Abstract:

    Drug-resistance acquisition through kinase gate-keeper mutations is a major hurdle in the clinic. Here, we determined the first crystal structures of the human FGFR4 kinase domain (FGFR4K) alone and complexed with ponatinib, a promiscuous type-2 (DFG-out) kinase inhibitor, and an oncogenic FGFR4K harboring the V550L gate-keeper mutation bound to FIIN-2, a new type-1 irreversible inhibitor. Remarkably, like ponatinib, FIIN-2 also binds in the DFG-out mode despite lacking a functional group necessary to occupy the pocket vacated upon the DFG-out flip. Structural analysis reveals that the covalent bond between FIIN-2 and a cysteine, uniquely present in the glycine-rich loop of FGFR kinases, facilitates the DFG-out conformation, which together with the internal flexibility of FIIN-2 enables FIIN-2 to avoid the steric clash with the gate-keeper mutation that causes the ponatinib resistance. The structural data provide a blueprint for the development of next generation anticancer inhibitors through combining the salient inhibitory mechanisms of ponatinib and FIIN-2.


  • Organizational Affiliation

    School of Pharmacy, Wenzhou Medical University , Wenzhou, Zhejiang 325035, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Fibroblast growth factor receptor 4323Homo sapiensMutation(s): 2
Gene Names: FGFR4JTK2TKF
EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P22455 (Homo sapiens)
Explore P22455
Go to UniProtKB:  P22455
PHAROS:  P22455
GTEx:  ENSG00000160867
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22455
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
37O
Query on 37O

Download Ideal Coordinates CCD File
B [auth A]N-(4-{[3-(3,5-dimethoxyphenyl)-7-{[4-(4-methylpiperazin-1-yl)phenyl]amino}-2-oxo-3,4-dihydropyrimido[4,5-d]pyrimidin-1(2H)-yl]methyl}phenyl)propanamide
C35 H40 N8 O4
DKHGWJNITASDGF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free:  0.234 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.193 (Depositor), 0.200 (DCC)
  • R-Value Observed: 0.197 (Depositor)
Space Group: H 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 139.599α = 90
b = 139.599β = 90
c = 49.66γ = 120
Software Package:
Software NamePurpose
HKL-3000data collection
PHENIXmodel building
PHENIXrefinement
HKL-3000data reduction
HKL-3000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 37OClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-10-29
    Type: Initial release
  • Version 1.1: 2015-01-28
    Changes: Database references
  • Version 1.2: 2023-09-20
    Changes: Data collection, Database references, Derived calculations, Refinement description
  • Version 1.3: 2024-11-20
    Changes: Structure summary
